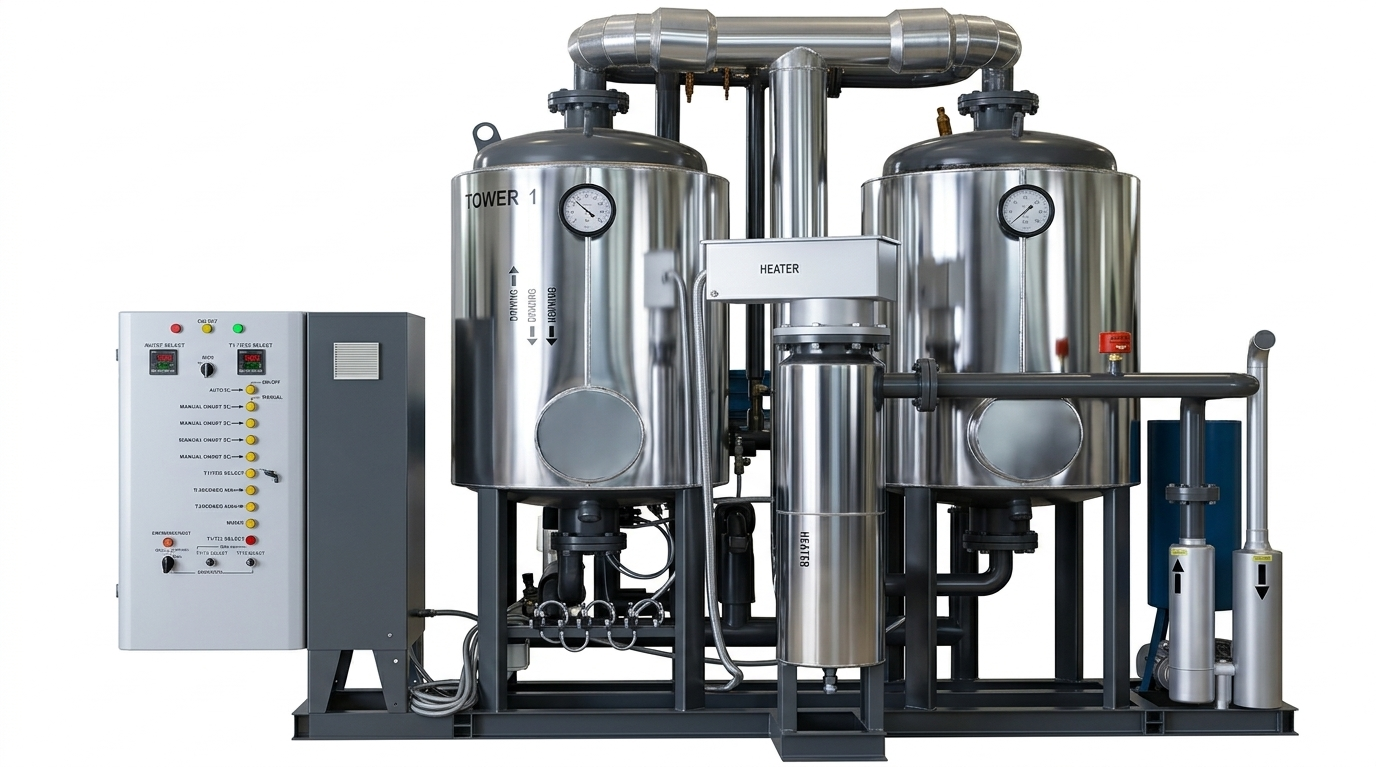

The DP Series is a twin tower heatless regenerative desiccant dryer designed for continuous industrial use, providing ultra-dry air with dew points from -20°C to -70°C.
Key Specifications
- Type: Heatless twin-tower desiccant dryer
- Dew Point Range: -20°C to -70°C
- Standard Dew Point: -40°C
- Working Pressure: Up to 7–16 bar
- Flow Capacity: Medium to very high CFM (industrial scale)
- Regeneration: Heatless (uses purge air)
- Desiccant: Activated alumina / molecular sieve
Key Features
- Twin Tower Continuous Operation
- One tower dries air while the other regenerates automatically
- Advanced Control OptionsTimer-based control
- Optional dew point sensor control (energy saving)
- DryLink / Automation Ready
- Compatible with remote monitoring & Industry 4.0 integration
- Heavy-Duty Industrial Design
- Built for 24/7 plant operation
- Low Maintenance
- Long desiccant life + simple valve mechanism
Applications
Best suited for high-demand industries:
- Automotive & CNC manufacturing
- Pharma & food processing
- Electronics & instrumentation
- Paint shops & powder coating
- Large compressor systems
Working Principle
- Wet compressed air enters through pre-filter
- Air flows through desiccant tower (adsorption) → moisture removed
- Dry air exits system
- Second tower regenerates using purge air
- Automatic switching ensures continuous dry air supply
