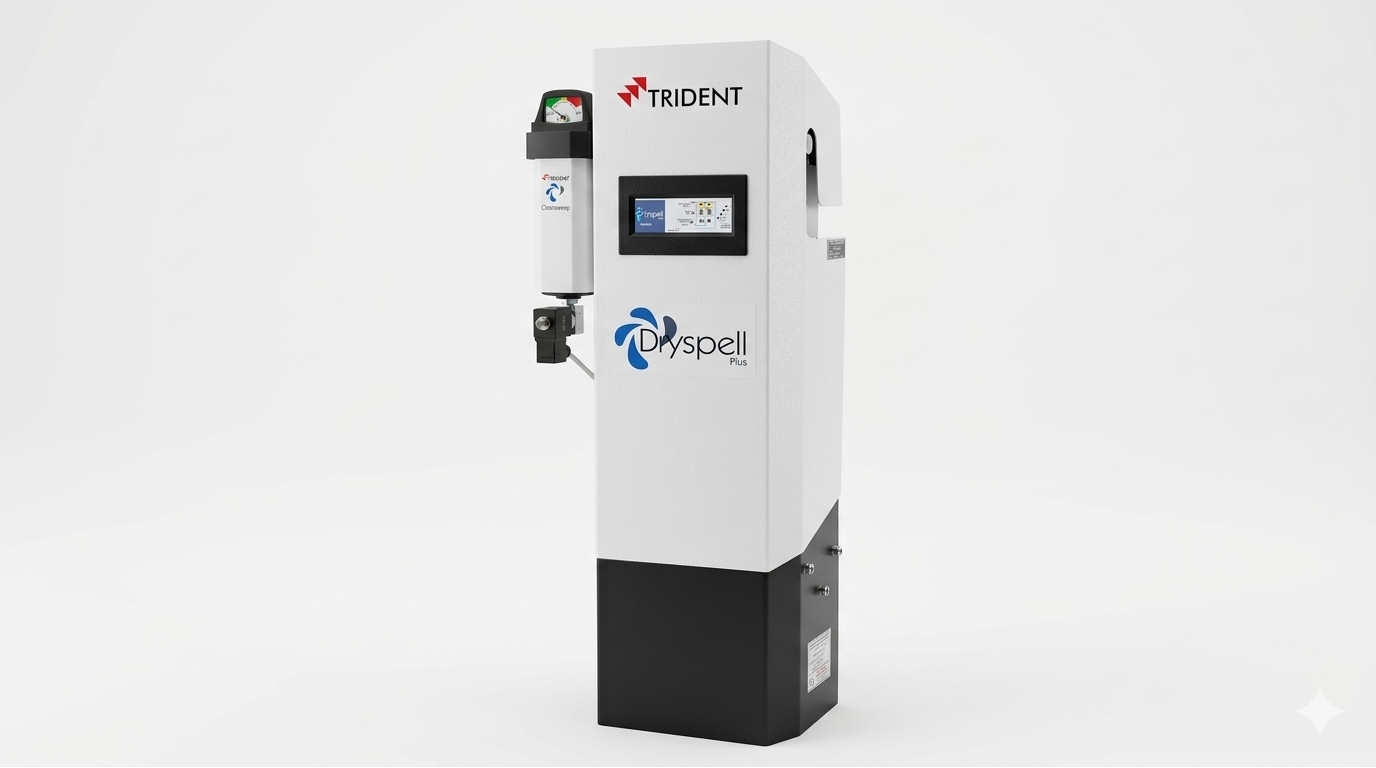

The Trident Dryspell Plus is a heatless regenerative desiccant air dryer designed to remove moisture from compressed air systems and deliver ultra-dry air (up to -40°C PDP) for critical industrial applications.
Key Features
- Twin Tower Heatless Technology
- One tower dries air while the other regenerates automatically.
- Ultra-Dry Air Output
- Maintains consistent -40°C dew point, ideal for sensitive processes
- Energy Efficient Design
- Uses purge economizer system to reduce air loss and operating cost
- Compact & Modular Construction
- Space-saving design with minimal maintenance requirements
- High Durability
- Aluminium body + high-strength desiccant for long life
Key Specifications
- Type: Heatless desiccant air dryer
- Dew Point: Up to -40°C PDP
- Working Pressure: Up to 16 kg/cm² (≈16 bar)
- Cycle Time: ~4 minutes
- Operating Voltage: 100–240V AC
- Purge Loss: ~15%
- Flow Range: Available from small (5 CFM) to large industrial capacities
- Pre-Filter: 0.01 micron recommended
